A New Disruptive Innovation Technology
Introducing a new form of refractory coatings supplied in a moist, granulated form that is mixed with water ON-SITE to produce a ready to use slurry. Unlike traditional premix coating that ship large volumes of water, granulated coatings deliver a concentrated product prepared only when needed. This improves consistency while reducing logistics cost and operational complexity. By separating transportation from preparation, foundries gain the ability to produce coatings exactly when required - without compromising performance.
Key Benefits for Foundries
Fresh, on-demand preparation
Preparation at the point of use for optimal consistency and performance.
reduce freight costs
Eliminates shipping water-one truckload replaces approximately two premix loads.
Lower handling requirements
Less total material to move, store and manage.
Simplified logistics
Eliminates Returnable Totes
Eliminates Tanker Endorsements
Eliminates Cleaning and Return Logistics
reduce carbon footprint
Lower transportation volume and packaging requirements
extended shelf life
Up to one year of stable storage
Equipment and Implementation
Validate Performance. Eliminate Risk.
Our Demo Granulated Preparation Unit (DGPU) allows foundries to experience granulated coating technology in real production conditions - before committing to full-scale implementation. It is designed for rapid deployment, the DGPU enables evaluation of performance, process compatibility, and operational benefits with minimal disruption.

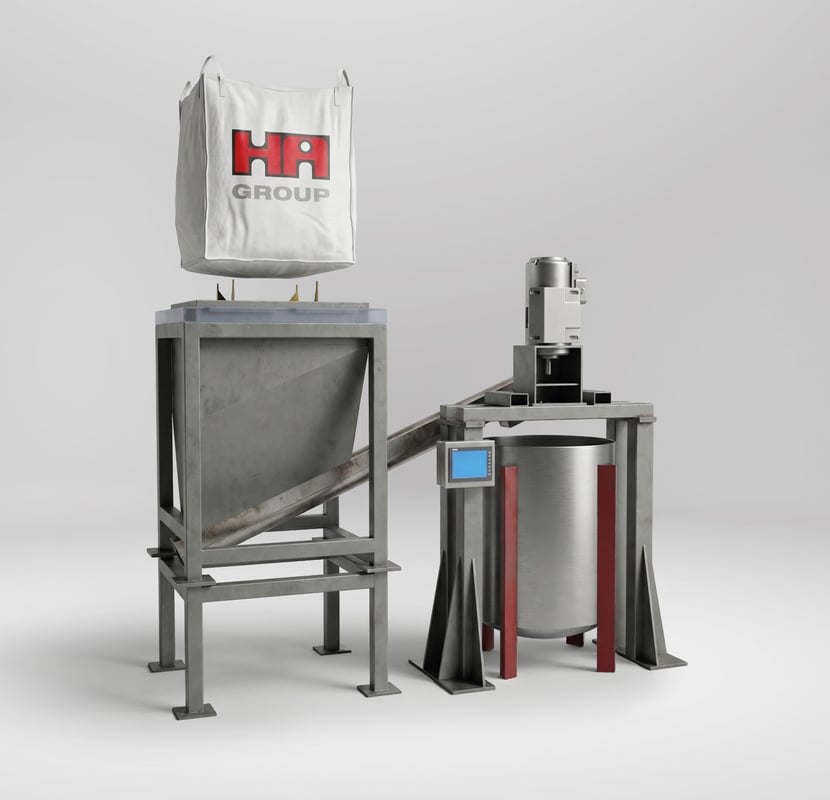

Integrated Preparation System (Mixer + GFH)
The Granulated Feed Hopper (GFH) is the material handling component of the system, delivering consistent, controlled feed of granulated coating in the mixer. The same hopper design is used for both trials and full-scale production- ensuring seamless scalability from validation to implementation.
Together, the GFH and mixing unit from a complete, integrated preparation system designed for both mobility and scale. The system is compact enough for on-site trials, yet robust enough for full production. With PLC-controlled operation, minimal utility requirements, and reduced manual handling, it delivers consistent performance while maximizing efficiency, safety, and throughput.
%20(1).jpg?width=830&height=800&name=HA_GPU_UNIT_RENDER%20(1)%20(1).jpg "HA_GPU_UNIT_RENDER (1) (1)")
Learn about Refractory Coatings
A good refractory coating can bring significant value to your operation through improved surface finish or reduced cleaning costs. Refractory coatings are a complex mixture of ingredients in which each plays a part in the final product's application characteristics, stability, surface finish, resistance to cast defects, and cost. Be sure to contact your HAI sales representative to determine which coating best fits your foundry's needs.
To learn more about refractory coatings, download our complete
Refractory Coating Brochure
Technical Support and Customer Implementation
We support implementation through a dedicated field technical services team.
Support Includes:
On-site implementation and start up
Process optimization
Laboratory testing and casting trials
Evaluation process and product changes
Contact:
Daniel Cygal
Product Manager Coatings
